Pre Order - Expected Early Dec | 1RM Ebony Functional Rack & Smith Machine Combo Side by Side

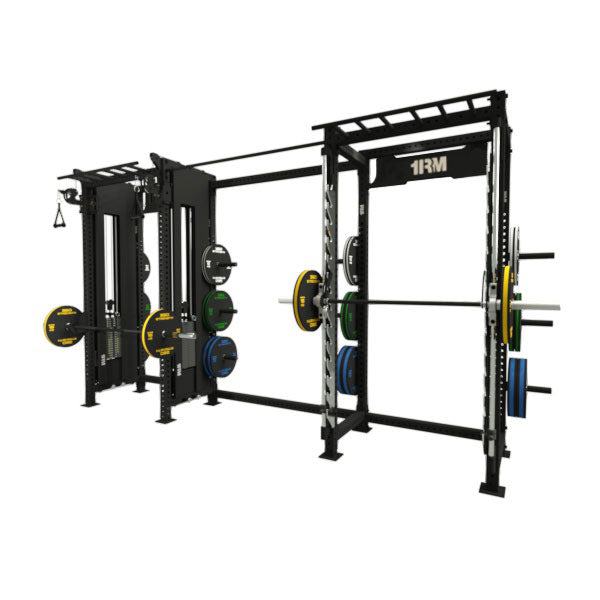

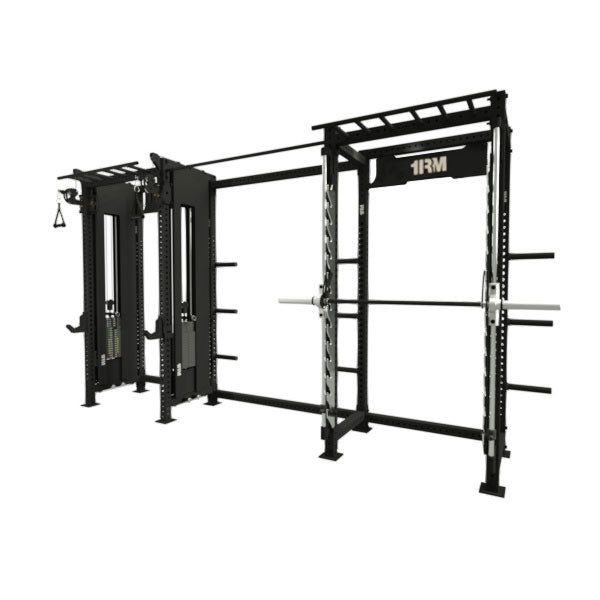

The 1RM Ebony Functional Rack & Smith Machine Combo Side by Side is the ultimate all-in-one machine, ideal for anyone looking to incorporate serious strength training into their gym. With a built in squat rack, functional trainer and smith machine in a walk through design, high end components, premium finishes and a 400kg weight rating on the Smith, it offers a safe and effective way to conduct a variety of movements including overhead presses, squats, bench presses, bent over rows, deadlifts, floor presses, hip thrust and lunges and more. All in a tiny footprint.

The Functional Trainer Rack offers a built-in squat rack, two 2:1 ratio 80kg or 130kg selectorised weight stacks with 2000lb rated tensile strength cables and sealed bearing machines aluminium pulleys.

Features include matte black textured powder coated steel frame, aircraft steel cables, and high quality machined aluminium pulley wheels. The little details also count with easy to adjust anodised aluminium pop pins, a magnetic selector pin with spring cables and band pegs for adding those incremental gains. With the top four weight plates weighing 2.5kg, and the remaining plates weighing 5kg, it's suitable for all lifters from beginner to experienced.

This innovative Smith Machine includes tempered hard chrome guide rods, aeronautical grade aluminium, Japanese linear bearings, a 20kg black hard chrome bar with a sharp fine knurling and a hard chrome, laser cut gun rack with numbers for ease of use, along with 75mm uprights with numbered holes, 32mm chin-up bars,  premium j-hooks and plate storage.

A staple in any commercial gym, the 1RM Ebony Functional Rack & Smith Machine Combo side by side allows you to lift free weights, or complete cable exercises on one side, and safely max out your training load without needing a spotter using the smith machine on the other.

Need more storage? Add shelving to the bridging cell through the middle to store your medicine balls, kettlebells, dumbbells and more.

Functional Rack Side Features

• 2 x 80kg steel machined weight stack
• 2:1 Pulley Ratio
• One hand slider adjustment
• Heavy-duty rated cables
• Sealed bearing machined aluminium pulleys

• Magnetic selector pin with spring cable
• Band Peg attachments

• Single 32mm Chin-up Bar
• Premium J-Hooks supplied

Smith Machine Features

• Aeronautical grade aluminium slider and bar ends
• Tempered Hard Chrome Guide Rods
• Japanese Linear Bearings
• 20kg Black Hard Chrome Plated Bar
• Laser cut, numbered hard chrome gun rack
• 75x75x3mm steel frame
• 32mm single chin-up bars
• 8 plate storage pegs
• Laser cut and robot welded
• Matte black powder coated steel frame
• 400kg weight capacity on Smith
• Full Commercial Warranty


Specifications

• Assembled dimensions: 4600 (W) x 910 (D) x 2510 (H) mm

Customisable

Not quite what you're after? Contact us for a chat and we'll help build the machine you want using the 1RM Modular range.

The 1RM modular range includes power racks, squat racks, rig systems, storage systems, functional cable machines, smith machine attachments and a lat pulldown machine that are all made to fit together - along with over 20 accessories to suit giving you tens of thousands of possible combinations.

And if we can't build what you want from the 1RM modular range, we'll build you a bespoke solution.

Other Considerations:

Space Required. Please note you need a minimum ceiling clearance of 2.6m for installation. It is recommended around 2.9m to 3m ceiling clearance to have full functionality overhead for barbell work and bar muscle ups. Allow at least 1m clearance either side for comfortable access when changing barbell plates.

Installation. It's recommended on this 1RM system that the uprights to be mounted to the floor. The uprights can be fixed to a floor or structural surface using M12 or M16 size dynabolts / concrete screws (not supplied). Each upright requires four screws. The method used to install the uprights is dependent on the floor they are being affixed to and your preferred method. Any M12 or M16 fixing 75mm or longer is suitable for the intended purpose of functional training depending on the thickness of the flooring.

All bolts required to attach uprights to chin-up bars, crossmembers and other accessories are included.

If it cannot be bolted to the floor, it is recommended that the 1RM stubby feet be purchased and installed to remove any hazard.
